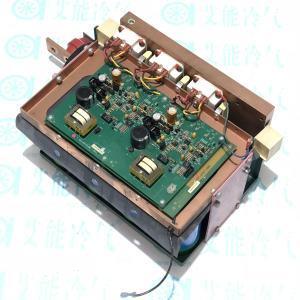

YORK CHILLER 371 03788 336
Detail Information
Product Description
YORK/JCI Chiller Service Parts
Model: 371 03788 336
This page lists service parts for YORK/JCI chillers, specifically focusing on optional harmonic filter components for 700/572 HP and 912/752 HP models. Refer to the tables below for specific part numbers and quantities.
Key Benefits:
- Ensures proper maintenance and repair of YORK/JCI chillers.
- Provides a comprehensive list of filter components.
- Facilitates easy identification and ordering of replacement parts.
- Supports optimal chiller performance and longevity.
Target Industries: HVAC, Industrial Refrigeration, Building Maintenance
Applications: Chiller repair, preventative maintenance, component replacement
Product Attributes
Brand:
YORK/JCI
Model Number:
371 03788 336
Origin:
United States
MOQ:
1
FOB Price:
1 USD
Technical Specifications
The following tables detail the service parts list for the optional harmonic filter in YORK/JCI chillers.
700/572 HP Harmonic Filter Parts
| Index Number | Fig. | Part Description | QTY. | REV. |
|---|---|---|---|---|
| 9 | 1 | Board, Filter Logic | 1 | |
| 15 | 2 | Assembly, Filter Trap | 1 | |
| 16 | 2 | Fuses, Filter Line, 300 Amp | 3 | |
| 17 | 2 | Inductor, Filter | 1 | |
| 29 | 3 | Contactor, Filter Input | 1 | |
| 30 | 3 | Resistors, Filter Pre-Charge | 3 | |
| 31 | 3 | Board, Line Voltage Isolation | 1 | |
| 32 | 3 | Board, Bus Isolator | 1 | |
| 33 | 3 | Sensor, Electronic Current, 1000 Amp | 2 | |
| 34 | 3 | Contactor, Pre-Charge | 1 | |
| 35 | 3 | Transformer, Input Current | 2 | |
| 41 | 4 | Assembly, Filter Pole Replacement | 1 |
912/752 HP Harmonic Filter Parts
| Index Number | Fig. | Part Description | QTY. | REV. |
|---|---|---|---|---|
| 1 | 1 | Board, Filter Logic | 1 | |
| 15 | 2 | Assembly, Filter Trap | 1 | |
| 16 | 2 | Fuses, Filter Line, 500 Amp | 3 | |
| 17 | 2 | Inductor, Filter | 1 | |
| 29 | 3 | Contactor, Filter Input | 1 | |
| 33 | 3 | Sensor, Electronic Current, 1200 Amp | 2 | |
| 35 | 3 | Transformer, Input Current | 2 | |
| 41 | 4 | Assembly, Filter Pole Replacement | 1 |
